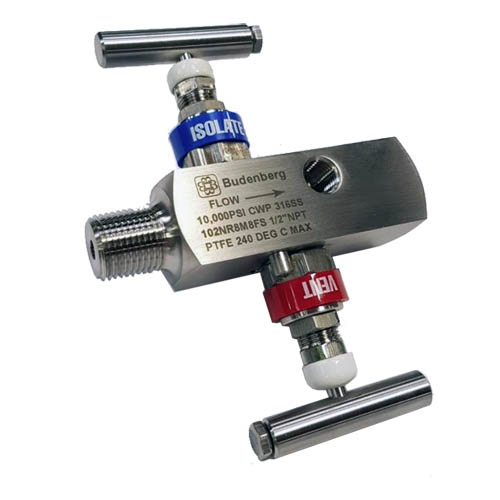

  • 1/2 inch NPT MxF 2-Way Manifold

    102NR8M8FS


    The 102NRM range of Two Valve Manifolds provide a low cost Block and Bleed function to any instrument installation or application.

    Based around the Budenberg 10N Needle Valve technology the the versatility of these manifolds enable isolation, calibration and venting within a single unit thereby eliminating potential leak paths. The 102NRM range includes a full range of configurations and connections allowing them to be used on a full range of instrumentation including Transmitters, Gauges, Switches etc.

    All units incorporate the Budenberg 10N high temperature, high pressure valve head assembly that is suitable for pressures up to 10,000 psig and temperatures up to 450 Degree Celsius.

    These lightweight compact units can be readily manufactured, modified or configured to suit any individual application or customer requirement.
